Garmin
Spy Pole™ Mount
SKU: 010-03012-00
Tax included.
Attach your transducers to the Spy Pole mount, the revolutionary motorized sonar control, to precisely and wirelessly maneuver LiveScope™ and GT360UHD transducers.
Details
Part number / SKU: 010-03012-00
Category: Marine / Sonar & Mounts
Specifications
General
| WARRANTY | 3-year, limited lifetime on shaft |
|---|---|
| FOR USE IN | freshwater, brackish water and saltwater |
| MOUNT STYLE | quick-release, reversible |
| VOLTAGE | 10 V-45 V |
| ELECTRIC STEERING | Yes |
| SHAFT LENGTH (FROM SHAFT CAP TO SHAFT END) | 42" or 49" |
| ADJUSTABLE SHAFT DEPTH | Yes |
| WATER RATING (COMPONENTS ABOVE WATER) | IPX7 |
| MOUNTING LOCATION | Force, Force Pro (included); Deck and Gunnel (accessories required) |
| DECK STABILIZER ROD | yes (included) |
| DOGBONE STABILIZER | compatible, required with 2 or more transducers (not included) |
Electrical Features
| POWER INPUT | Wired 2 m (6.6 ft) cable |
|---|---|
| POWER USAGE | 18 W typical; 70 W max |
| FUSE | 8 A |
Transducer Support
| LIVESCOPE™ ADJUSTABLE PERSPECTIVE BOTTOM MOUNT | Included: Forward, Down and Perspective at 0° , 7.5°, 15°, 22.5° |
|---|---|
| SUPPORTED LIVESCOPE TRANSDUCERS | LVS32, LVS34, LVS62 (max of one with internal cable routing) |
| ONEVÜ SCANNING TRANSDUCER SUPPORT | Yes |
| INTERNAL CABLE ROUTING | Yes |
| QUICK-RELEASE CABLE KIT | Yes |
Networking & Connections
| COMPATIBLE CHARTPLOTTERS | Wireless |
|---|---|
| COMPATIBLE FORCE TROLLING MOTORS | Wireless; Learn More |
| CONTROL ACCESSORIES | Wireless |
| MAXIMUM CONNECTIONS | 5 gesture remotes 1 foot control 1 heading sensor 1 trolling motor 1 chartplotter network |

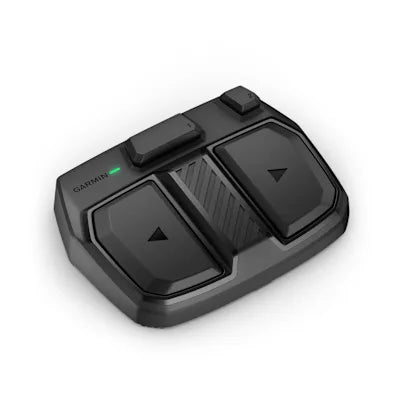

Foot Control
| DIMENSIONS | 7.8" x 5.8" x 1.8" |
|---|---|
| WIRELESS COMMUNICATION | Yes |
| POWER SUPPLY | 2 AA batteries (not included) |
| BATTERY LIFE (TYPICAL USE) | 1 full season |
| WATER RATING | IPX7 |
| PROGRAMMABLE BUTTONS | yes (2) |
| STATUS INDICATION | LED light |
| QUICK-RELEASE MOUNT | Yes |
Gesture Remote
| DIMENSIONS | 1.25" diameter x 0.5“ thickness |
|---|---|
| WIRELESS COMMUNICATION | Yes |
| POWER SUPPLY | CR2032 battery (included) |
| BATTERY LIFE (TYPICAL USE) | 1 full season |
| WATER RATING | IPX7 |
| PROGRAMMABLE BUTTONS | yes (3) |
| STATUS INDICATION | LED light |
| QUICK-RELEASE MOUNTING OPTIONS | 2 rod, hat, handheld with lanyard |
| FLOATS | yes (with handheld only) |
| STEERING | yes (swing and twist) |
Heading Sensor
| DIMENSIONS | 3.5" x 2.0" x 1.0" |
|---|---|
| WIRELESS COMMUNICATION | Yes |
| VOLTAGE | 10 V-45 V |
| POWER INPUT | Wired, 2 m (6.5 ft) cable |
| POWER USAGE | 0.1 W typical; 1 W max |
| FUSE | 1 A |
| WATER RATING | IPX7 |
| STATUS INDICATION | LED light |
In the box
Spy Pole mount with 42" or 49" shaft, depending on version selected
42” is recommended for 50” Force® or Force® Pro trolling motors
49” is recommended for 57” Force or Force Pro trolling motors
Garmin GT360UHD transducer and mount (included with bundles only)
Mounting plate for Force Pro trolling motor (includes trolling motor kickstand)
Gesture remote (includes four different mounting options and CR2032 lithium coin cell battery)
Foot control (includes mount)
Power cable
Quick-release cable management kit
Wireless heading sensor
Adjustable perspective bottom mount for LiveScope™ transducers
Dogbone stabilizer (included with bundles only)
Hardware
Documentation
Product reference
Spy Pole™ Mount
