Garmin

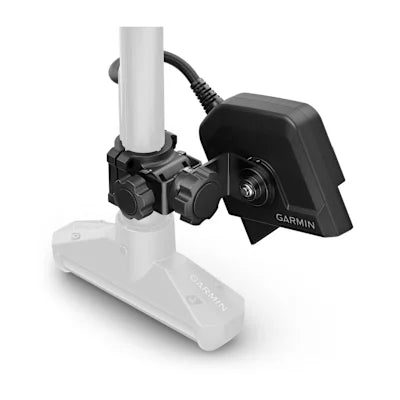

LiveScope™ 2 HD Transducer
SKU: 010-03899-00
Regular price
$2,199.99
Tax included.
See fish and lures in real time in high definition like never before with LiveScope 2 HD sonar. With ultra-high resolution, integrated image stabilization and improved stitching, your images are cleaner and crisper.
Details
Part number / SKU: 010-03899-00
Configuration: LVS42HD
Category: Marine / Sonar & Mounts
Specifications
General
| TRANSDUCER BEAMWIDTH | Forward: 20° x 165° Down, Perspective: 20° x 180° |
|---|---|
| TRANSDUCER CABLE LENGTH | 5.5 m (18 ft) |
| TRANSDUCER NUMBER OF PINS | 7 |
| DIMENSION | 5.2” x 5.3” x 1.9” (13.3 x 13.4 x 4.8 cm) |
| WEIGHT | 3.62 lbs (1.646 kg) |
| TEMPERATURE RANGE | Operating: 0 C to 40 C |
Electrical Features
| POWER INPUT | 10-35 V |
|---|---|
| POWER USAGE | 32 W max |
| FUSE | 7.5 A |
| COMPASS-SAFE DISTANCE | 4" |
Sonar Features
| FREQUENCY | 850 kHz-1600 kHz |
|---|---|
| TRANSMIT POWER | 521 W |
| MAXIMUM DEPTH | Down and Forward: 125’ |
| SONAR TYPE | Live |
| TARGET SEPARATION @ 100 FT | 12.6" |
| TARGET SEPARATION @ 30 FT | 3.8" |
| PERSPECTIVE MODE MOUNT INCLUDED | yes (adjustable angles) |
| WATER DETECTION TRANSMIT CONTROL | Yes |
Networking & Connections
| GARMIN MARINE NETWORK PORTS | 1 BlueNet (small connector) with GMN1 Adapter |
|---|---|
| POWER CONNECTION | yes (2-wire) |
In the box
LiveScope 2 LVS42HD transducer
Adjustable perspective shaft mount for LiveScope 2 transducers
Trolling motor barrel mount
Power/network cable with adapter
Adapter disc for the Force® Kraken trolling motor LiveScope transducer mount
Hardware
Documentation
