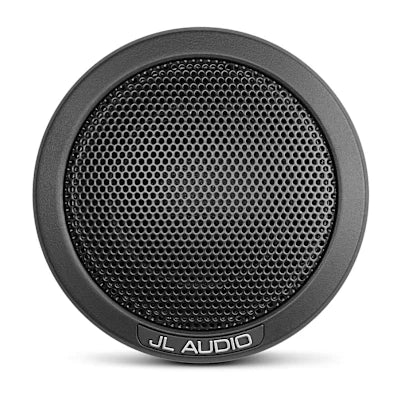

JL Audio® C6 Car Speakers
SKU: 010-03390-00
Tax included.
Born from the same DNA as our flagship JL Audio C7 speakers, the C6 series component drivers let you team premium, pure silk dome tweeters with highly linear woofers to create a loudspeaker system of exceptional refinement, precision and dynamic capability.
Details
Part number / SKU: 010-03390-00
Category: Auto & Home / Car Audio
Specifications
General
| WARRANTY | 1 year |
|---|---|
| SIZES | 1"/2.75"/6.5" |
| CONTINUOUS POWER HANDLING (RMS) | 1": 75 W 2.75": 50 W 6.5": 100 W |
| SENSITIVITY (SPL @ 1 W/1 M) | 1": 90 dB 2.75": 83.50 dB 6.5": 87.37 dB |
| SENSITIVITY (SPL @ 1 W/0.5 M) | 1": 96 dB |
| SENSITIVITY (SPL @ 2.83 V/1 M) | 1": 93 dB 2.75": 86.50 dB 6.5": 90.33 dB |
| FREQUENCY RESPONSE (+/- 3 DB) | 1": 3 kHz-21 KHz 2.75": 350 Hz-4.8 KHz 6.5": 55 Hz-6 KHz |
| NOMINAL IMPEDANCE | 4 Ω |
| RECOMMENDED AMPLIFIER POWER (RMS) | 1": 25-100 W/Channel 2.75": 25-80 W/Channel 6.5": 25-150 W/Channel |
| VOICE COIL DIAMETER | 2.75": 0.8" (20.5 mm) 6.5": 1.27" (32 mm) |
| CONE MATERIAL | Vacuum-formed, mineral-filled polypropylene |
| TWEETER TYPE | Silk Dome |
| TWEETER SIZE | 1" (25 mm) |
| GRILLE(S) INCLUDED | Yes |
Networking & Connections
| SPEAKER CONNECTIONS | Spade connectors |
|---|
Mounting Dimensions
| FRAME OUTER DIAMETER | 2.75": 2.52" (77 mm) 6.5": 6.5" (165 mm) |
|---|---|
| MOUNTING DEPTH CLEARANCE | 2.75": 1.42" (36 mm) 6.5": 2.60" (66 mm) |
| FRONTAL GRILLE PROTRUSION | 2.75": 0.47" (12 mm) 6.5": 1" (25 mm) |
| MOUNTING HOLE | 2.75": 2.52" (64 mm) 6.5": 5.46" (139 mm) |
| GRILLE TRAY OUTER DIAMETER | 2.75": 3.58" (91 mm) 6.5": 6.76" (172 mm) |
| BOLT HOLE CIRCLE | 2.75": 3.03" (77 mm) 6.5": 6.12" (156 mm) |
| MOTOR OUTER DIAMETER | 2.75": 2.75" (69 mm) 6.5": 3.54" (90 mm) |
Parameters
| FREE AIR RESONANCE (FS) | 1": 1500 Hz 2.75": 185 Hz 6.5": 52.8 Hz |
|---|---|
| ELECTRICAL “Q” (QES) | 2.75": 0.769 6.5": 0.647 |
| MECHANICAL “Q” (QMS) | 2.75": 7.848 6.5": 5.076 |
| TOTAL “Q” (QTS) | 2.75": 0.700 6.5": 0.574 |
| EQUIVALENT COMPLIANCE (VAS) | 2.75": 0.0353 cu ft (0.125 L) 6.5": 0.532 cu ft (15.069 L) |
| ONE-WAY LINEAR EXCURSION (XMAX; SPECS ARE DERIVED VIA ONE-WAY VOICE COIL OVERHANG METHOD WITH NO CORRECTION FACTORS APPLIED) | 2.75": 0.059" (1.50 mm) 6.5": 0.148" (3.75 mm) |
| REFERENCE EFFICIENCY (NO) | 1": 0.602% 2.75": 0.1414% 6.5": 0.344% |
| MOVING MASS (MMS) | 2.75": 4.65 g 6.5": 16.42 g |
| MECHANICAL COMPLIANCE (CMS) | 2.75": 0.00031 m/N 6.5": 0.000581 m/N |
| MAGNETIC STRENGTH (BL) | 2.75": 5.03 6.5": 5.186 |
| EFFECTIVE PISTON AREA (SD) | 2.75": 3.66 in² (0.00236 m²) 6.5": 21.4 in² (0.013807 m²) |
| DC RESISTANCE (RE) | 1"/6.5": 3.20 Ω 2.75": 3.58 Ω |
Tweeter Specifications
| FLUSH MOUNT FIXTURE DIAMETER | 1": 2.13" (54 mm) |
|---|---|
| SURFACE MOUNT FIXTURE DIAMETER | 1": 2.11" (54 mm) |
| FLUSH MOUNT MOUNTING HOLE DIAMETER | 1": 1.85" (47 mm) |
| FLUSH MOUNT MOUNTING DEPTH | 1": 1.85" (47 mm) |
| FLUSH MOUNT TWEETER FRONTAL PROTRUSION | 1": 0.30" (8 mm) |
| SURFACE MOUNT TWEETER FRONTAL PROTRUSION | 1": 1.04" (26 mm) |
In the box
Two woofersTwo tweetersTwo crossoversEight speed clipsTwo 0.250" female crimpable connectorsTwo 0.185" female crimpable connectorsTwo 0.185" male crimpable connectorsTwo 0.110" male crimpable connectorsEight 1-1/4" mounting screwsFour 1" pan head screwsTwo 1" flat head screwsTwo flush mount tweeter housingsTwo surface mount tweeter housingsTwo metal spring clips (for flush mounting)Two M4x30 mm machine screwsTwo grille frames, grilles and JL Audio logo badgesC6-653 also includes:2 midrangesTwo 0.185" female crimpable connectorsTwo 0.110" female crimpable connectorsEight 1-1/4" mounting screwsTwo grille frames, grilles and JL Audio logo badgesFour OEM adapter ringsComponent Tweeters (C6-100ct) include:One tweeterOne 15 microfarad capacitorOne 0.185" male crimpable connectorsOne 0.110" male crimpable connectorsOne 1" flat head screwOne flush mount tweeter housingOne surface mount tweeter housingOne metal spring clip (for flush mounting)One M4x30 mm machine screwComponent Drivers (C6-275cm and C6-650cw) include:One midrange or wooferOne 0.185" female crimpable connectorOne 0.110" female crimpable connectorFour 1-1/4" mounting screwsOne grille frame, grille and JL Audio logo badgeC6-275cm also includes:Two OEM adapter ringsEngineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.
