JL Audio

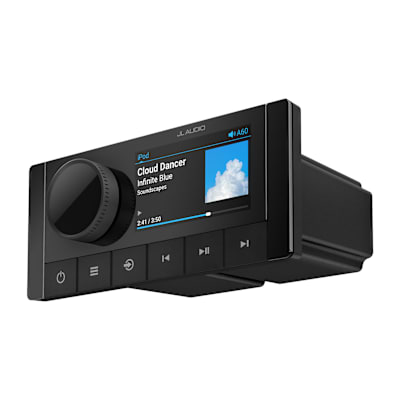

JL Audio® A60
SKU: 010-02983-00
Regular price
$599.99
Tax included.
Cruise to the soundtrack of the A60 advanced marine head unit — the high-quality sound system with a sleek, aesthetic design to complement your helm.
Details
Part number / SKU: 010-02983-00
Category: Marine / Marine Audio
Specifications
General
| WARRANTY | 3 years |
|---|---|
| PHYSICAL DIMENSIONS (HEIGHT) | 2.68" (68 mm) |
| PHYSICAL DIMENSIONS (WIDTH) | 6.18" (157 mm) |
| PHYSICAL DIMENSIONS (DEPTH) | 4.70" (119 mm) |
| WEIGHT | 1.04 lbs (470 g) |
| CONTROL SURFACE DUST/WATER RATING (WHEN PROPERLY INSTALLED) | IPX6 and IPX7 |
| REAR DUST/WATER RATING (WHEN PROPERLY INSTALLED) | IPX6 and IPX7 |
| OPERATING TEMPERATURE RANGE | 32° F to 122° F (0° C to 50° C) |
| CURRENT DRAW (MAX) | 15 A |
| MULTI-LANGUAGE INTERFACE | Bulgarian, Chinese (Simplified), Chinese (Traditional), Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (BR), Portuguese (PT), Slovenian, Spanish, Swedish, Thai, Turkish, Vietnamese |
Audio
| RATED CONTINUOUS (RMS) POWER (14.4 V INPUT @ 4 OHM < 1% THD) | 17 W x 4 (CTA-2006) |
|---|---|
| MAXIMUM DYNAMIC POWER (14.4 V INPUT @ 4 Ω < 10% THD) | 22 W x 4 (CTA-2006) |
| TOTAL MAXIMUM DYNAMIC POWER | 89 W (CTA-2006) |
Electrical Features
| POWER INPUT | 10.8-16 VDC |
|---|---|
| COMPASS-SAFE DISTANCE | 17.7" (45 cm) |
Stereo Features
| DISPLAY SIZE | 2.95" (74 mm) |
|---|---|
| DISPLAY TYPE | color LCD |
| DISPLAY RESOLUTION | 640 x 360 pixels |
| OPTICALLY BONDED DISPLAY | Yes |
| BUILT-IN AMPLIFIER | Class D (4 Ω) |
| BUILT-IN DIGITAL SIGNAL PROCESSING (DSP) | yes (with custom DSP profile setup using Garmin Audio app) |
| GARMIN AUDIO CONTROL | yes (MFD, smart device and Garmin watch) |
| MULTI-ZONE™ TECHNOLOGY | 4 zones |
| BLUETOOTH® WIRELESS TECHNOLOGY | yes (Bluetooth® 6.1) |
| DAB+ BUILT-IN | Yes |
| SOFTWARE UPDATES | Over-the-air updates via Garmin Audio app/USB |
Sources
| SUPPORTED SOURCES | AM, FM, Bluetooth, USB, USB audio, iPhone, iPod, AUX x1 |
|---|---|
| SUPPORTED AUDIO FORMATS (USB) | MP3, M4A, AAC, FLAC, WAV |
Networking & Connections
| AUXILIARY INPUTS (RCA) | 1 |
|---|---|
| NMEA 2000® PORTS | 1 |
| NMEA 2000® LEN | 1 (50 mA) |
| USB 2.0 PORTS | 1 (USB-C) |
| AM/FM PORTS (MOTOROLA ANTENNA CONNECTOR) | 1 |
| DAB+ PORTS (MOTOROLA ANTENNA CONNECTOR) | 1 |
| SPEAKER CONNECTIONS | 4 (2 zone amplified) |
| RCA PRE-OUT (LEFT, RIGHT AND SUBWOOFER - REQUIRES EXTERNAL AMPLIFICATION) | 4 zones |
| LINE OUT (REQUIRES EXTERNAL AMPLIFICATION) | 4 (L + R per zone) |
| SUBWOOFER OUT (REQUIRES EXTERNAL AMPLIFICATION) | 4 (1 mono output per zone) |
| WIRELESS FREQUENCIES/PROTOCOLS | Bluetooth® Classic: 2.4 GHz @ +10 dBm nominal Bluetooth Low Energy: 2.4 GHz @ +10 dBm nominal |
| BLUETOOTH® WIRELESS RANGE | up to 30 ft |
In the box
JL Audio A60Power/speaker harnessZone 1 and zone 2 harnessZone 3 and zone 4 harnessMounting hardwareDocumentation
Product reference
JL Audio® A60
