Garmin
GPSMAP® 9217xsv
SKU: 010-03177-03
Regular price
$7,199.99
Tax included.

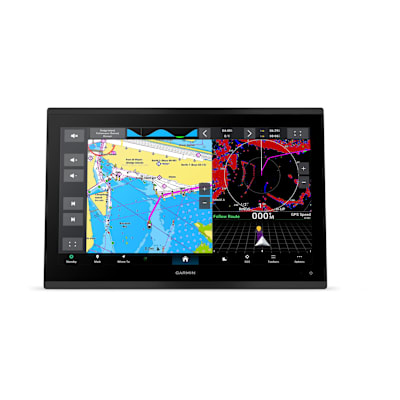

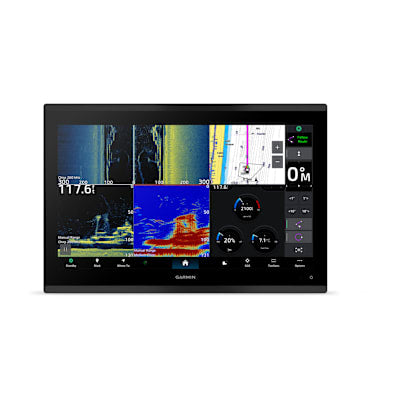

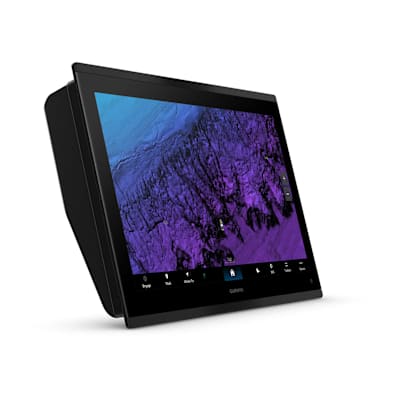

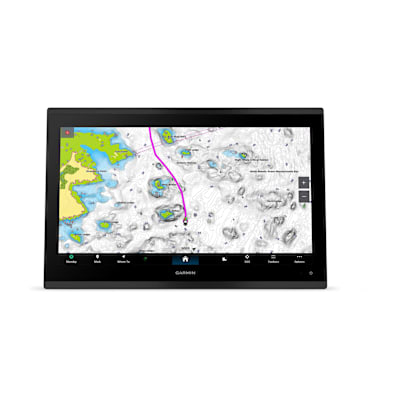

Premium 17-inch chartplotter with a 4K touchscreen display, built-in sonar and Garmin Navionics+™ charts.
Details
Part number / SKU: 010-03177-03
Category: Marine / Chartplotters
Specifications
General
| Dimension | 16.80" x 11.23" x 3.60" (42.7 cm x 28.5 cm x 9.2 cm) |
|---|---|
| Weight | 13.0 lbs (5.90 kg) |
| Water rating | IPX7 |
| Touchscreen | Yes |
| Display Type | 4K, IPS; Mini LED (Local Dimming) backlight |
| Display Size | 15.04" x 8.50" x 17.25" diagonal (38.2 cm x 21.5 cm x 43.8 cm diagonal) |
| Display resolution | 3840 x 2160 pixels |
| Mounting Options | Flat or flush |
| Input | Touchscreen |
| Polarized lens viewability | Yes |
Maps & Memory
| Accepts Data Cards | 2 microSD™ cards (on rear of product) |
|---|---|
| Supports USB card reader | Yes |
| Waypoints | 5,000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
Sensors
| GPS | Yes |
|---|---|
| GLONASS | Yes |
| Galileo | Yes |
| BeiDou | Yes |
| Has built-in receiver | Yes |
| Receiver | 10 Hz |
| NMEA 2000 Compatible | Yes |
| NMEA 0183 Compatible | Yes |
| Supports WAAS | Yes |
| Supports multi-band, multi-constellation GPS | Yes |
Built-in Maps
| Built-in Auto Guidance+ | Yes |
|---|---|
| Garmin Navionics+ (inland and coastal) | Yes |
| Garmin Navionics+ (coastal) | Yes |
| Garmin Navionics+ (inland) | Yes |
| Tide tables | Yes |
Optional Map Support
| BlueChart g3 | Yes |
|---|---|
| BlueChart g3 Vision | Yes |
| LakeVü g3 | Yes |
| LakeVü g3 Ultra | Yes |
| Garmin Navionics+™ | Yes |
| Garmin Navionics Vision+™ | Yes |
| TOPO 100K | Yes |
| Standard mapping | Yes |
| Garmin Quickdraw Contours | Yes |
| Raster chart support | Yes |
Chartplotter Features
| Smart Mode Compatible | Yes |
|---|---|
| AIS | Yes |
| DSC | Yes |

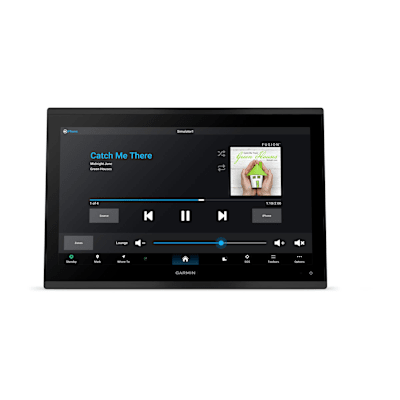

| Supports Fusion-Link™ compatible radios | Yes |
| GCV black box sonar support | Yes |
| ActiveCaptain® compatible | yes |
| Supports voice commands | Yes |
| GRID (Garmin Remote Input Device) compatible | Yes |
| GRID 20 compatible | Yes |
| Wireless Remote Compatible | Yes |
| Sailing features | Yes |
| Spoken audio alerts | Yes |
| OneHelm support | Yes |
Electrical Features
| Power Input | 10 to 32 Vdc |
|---|---|
| Typical current draw at 12 Vdc | 5.44 A |
| Maximum current draw at 12 Vdc | 6.3 A |
| Maximum power usage at 10 Vdc | 68 W |

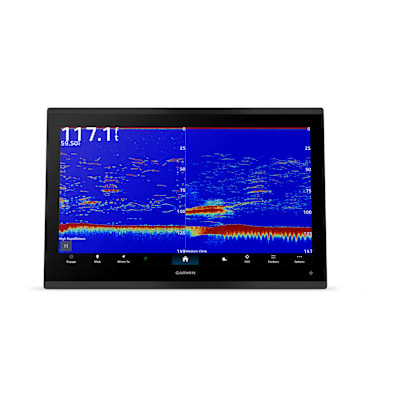

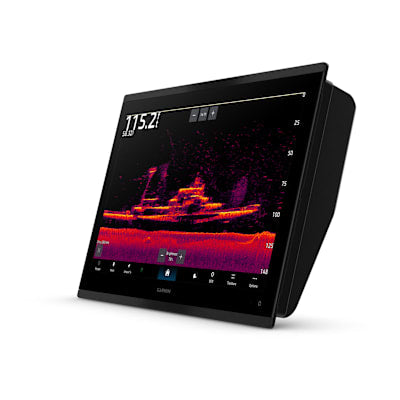

Sonar Features
| Displays sonar | Yes |
|---|---|
| Power output | 1 kW |
| Traditional sonar (dual frequency/beam) | yes (dual 1 kW) |
| Supports built-in xCHIRP | Yes |
| Supports built-in RapidReturn | yes (up to 2x) |
| ClearVü | Yes |
| SideVü | Yes |
| Panoptix™ sonar | Yes |
| LiveScope | Yes |

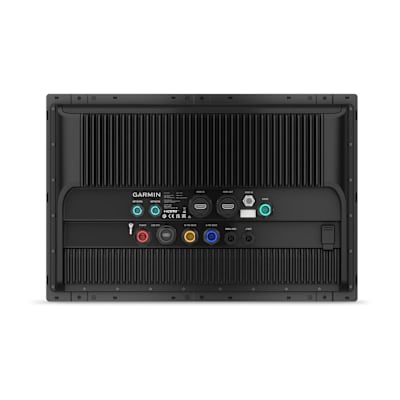

Networking & Connections
| NMEA 2000® ports | 1 |
|---|---|
| NMEA 0183 Input (Rx) Ports | 1 |
| NMEA 0183 output (Tx) ports | 1 |
| Video input ports | 1 (BNC composite); 1 HDMI (HDCP compliant) |
| Video output ports | 1 HDMI |
| J1939 ports | 1 |
| Garmin BlueNet network ports | 2 |
| 8-pin transducer ports | Yes |
| 12-pin transducer ports | Yes |
| USB ports | yes (1x USB-C) |
| Bluetooth® pairing | Yes |
| ANT® (connectivity) | Yes |
| Garmin Wi-Fi network (local connection) | Yes |
| Wi-Fi frequency bands | 2.4 GHz & 5 GHz |
| Audio output | Yes |
In the box
GPSMAP 9217xsv premium chartplotter
Power cable
Backbone/drop cable (2 meters) or T-connector for the NMEA 2000® Network
Flush mount kit
Protective cover
Trim piece snap covers
Documentation
Product reference
