Garmin
GPSMAP® 1543xsv
SKU: 010-03855-01
Regular price
$4,499.99
Tax included.

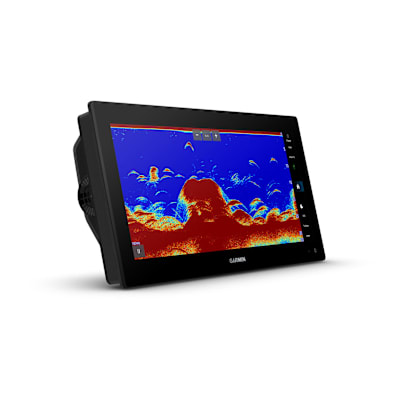

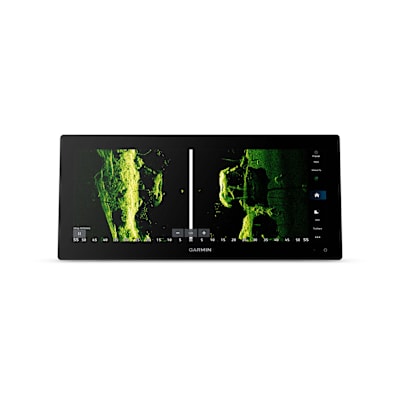

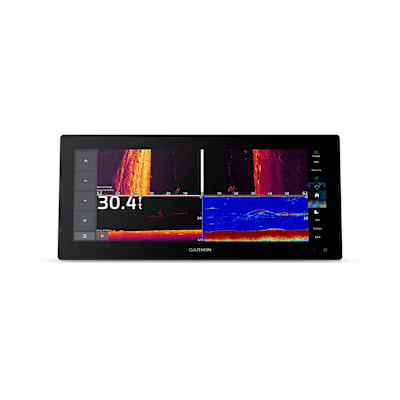

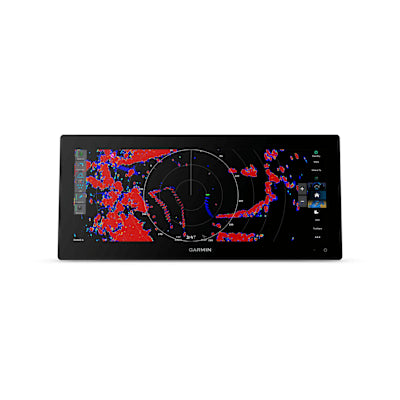

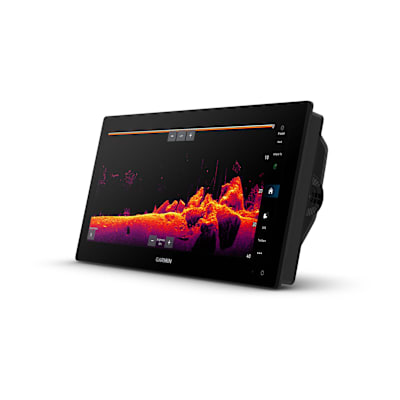

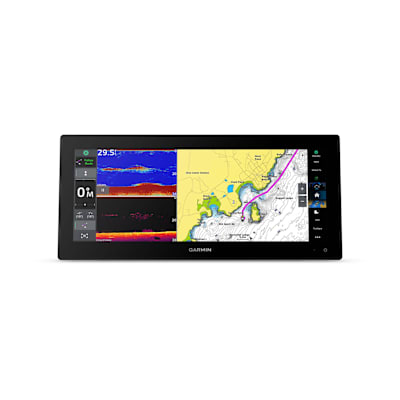

Ultrawide 15-inch touchscreen chartplotter with high-resolution display.
Details
Part number / SKU: 010-03855-01
Category: Marine / Chartplotters
Specifications
General
| DIMENSION | 15.3" x 7.02" x 3.3" (388.9 x 178.5 x 82.9 mm) |
|---|---|
| WEIGHT | 7.2 lbs (3.26kg) |
| WATER RATING | IPX7 |
| TOUCHSCREEN | Yes |
| DISPLAY TYPE | Ultrawide display, IPS |
| DISPLAY SIZE | 13.6" x 5.1"; 14.5" diagonal (34.6 x 12.9 cm; 36.8 cm diagonal) |
| DISPLAY RESOLUTION | 1920 x 720 pixels |
| MOUNTING OPTIONS | Bail, flush or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.) |
| POLARIZED LENS VIEWABILITY | Yes |
Maps & Memory
| ACCEPTS DATA CARDS | 2 microSD™ cards (back of device) |
|---|---|
| COMPATIBLE WITH GARMIN SD CARD READER | yes (USB card reader) |
| WAYPOINTS | 5000 |
| TRACK POINTS | 50,000 |
| TRACKS | 50 saved tracks |
| NAVIGATION ROUTES | 100 |
Sensors
| GPS | Yes |
|---|---|
| GLONASS | Yes |
| GALILEO | Yes |
| HAS BUILT-IN RECEIVER | Yes |
| RECEIVER | 10 Hz |
| NMEA 2000 COMPATIBLE | Yes |
| NMEA 0183 COMPATIBLE | Yes |
| SUPPORTS WAAS | Yes |
| SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS | yes (with external GPS antenna) |
Built-in Maps
| BUILT-IN AUTO GUIDANCE+ | Yes |
|---|---|
| GARMIN NAVIONICS+ (INLAND AND COASTAL) | Yes |
| TIDE TABLES | Yes |
Optional Map Support
| BLUECHART G3 | Yes |
|---|---|
| BLUECHART G3 VISION | Yes |
| LAKEVÜ G3 | Yes |
| LAKEVÜ G3 ULTRA | Yes |
| GARMIN NAVIONICS+™ | Yes |
| GARMIN NAVIONICS VISION+™ | Yes |
| TOPO 100K | Yes |
| STANDARD MAPPING | Yes |
| GARMIN QUICKDRAW CONTOURS | Yes |
| RASTER CHART SUPPORT | Yes |
Chartplotter Features
| SMART MODE COMPATIBLE | Yes |
|---|---|
| AIS | Yes |
| DSC | Yes |
| SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS | Yes |
| GSD BLACK BOX SONAR SUPPORT | Yes |
| GCV BLACK BOX SONAR SUPPORT | Yes |
| ACTIVECAPTAIN® COMPATIBLE | yes |
| SUPPORTS VOICE COMMANDS | yes (with external accessory) |
| GRID (GARMIN REMOTE INPUT DEVICE) COMPATIBLE | Yes |
| WIRELESS REMOTE COMPATIBLE | Yes |
| SAILING FEATURES | Yes |
| SPOKEN AUDIO ALERTS | Yes |
| ONEHELM SUPPORT | Yes |
Electrical Features
| POWER INPUT | 10 to 32 Vdc |
|---|---|
| TYPICAL CURRENT DRAW AT 12 VDC | 2.44 A |
| MAXIMUM CURRENT DRAW AT 12 VDC | 4.21 A |
| MAXIMUM POWER USAGE AT 10 VDC | 56.93 W |
Sonar Features
| DISPLAYS SONAR | Yes |
|---|---|
| POWER OUTPUT | 1 kW |
| TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) | Yes |
| CLEARVÜ | Yes |
| SIDEVÜ | Built-in 260/455/800/1000/1200 kHz |
| PANOPTIX™ SONAR | Yes |
| LIVESCOPE | Yes |
Networking & Connections
| NMEA 2000® PORTS | 1 |
|---|---|
| NMEA 0183 INPUT (RX) PORTS | 1 |
| NMEA 0183 OUTPUT (TX) PORTS | 1 |
| VIDEO INPUT PORTS | 1 (BNC composite) |
| J1939 PORTS | 1 |
| GARMIN MARINE NETWORK PORTS | 2 |
| 12-PIN TRANSDUCER PORTS | 1 |
| USB PORTS | Yes |
| BLUETOOTH® PAIRING | yes (BLE) |
| ANT® (CONNECTIVITY) | Yes |
| GARMIN WI-FI NETWORK (LOCAL CONNECTION) | Yes |
In the box
GPSMAP 1543xsv ultrawide chartplotter
microSD™ card preinstalled
Power cable
Thin flush mount kit with gasket
Protective cover
8-pin transducer to 12-pin sounder adapter cable
2 m backbone/drop cable and T-connector for NMEA 2000® Network
Documentation
Product reference
