Garmin
Garmin Signal™ VHF 400
SKU: 010-02951-00
Regular price
$1,499.99
Tax included.
Premium VHF marine radio with a built-in AIS transponder and sleek 3.5-inch color touchscreen display.
Details
Part number / SKU: 010-02951-00
Category: Marine / Marine Communication & Safety
Specifications
General
| Unit size | Head Unit: 75 x 160 x 104 mm (3.0" x 6.3" x 4.1")Fist Mic: 100 x 60 x 31 mm (3.9" x 2.4" x 1.2") |
|---|---|
| Weight | Head Unit: 655 g (1.45 lbs) Fist Mic: 245 g (0.54 lbs) |
| Operating voltage | 9.6 - 32 VDC |
| Water rating | IPX7 |
| Display Type | color IPS LCD, capacitive touch |
| Display Size | 3.5" (89 mm) |
| Display resolution | 640 x 480 pixels |
| Operating temperature | –20° to 55° C (–4° to 131° F) |
| Inland waterways (ATIS) | Yes |
| Backlight | 1,000 nits |
| Multi-language interface | Yes |
VHF Features
| Adaptive noise cancellation | Yes |
|---|---|
| Audio record and playback | Yes |
| Auto squelch | Yes |
| Dual/Tri watch | Yes |
| Presets watch | Yes |
| NOAA weather alert | Yes |
| NOAA weather watch | Yes |
| Loud hailer | Yes |
| Loudhailer listen back | Yes |
| Intercom support | Yes |
| AIS target display | Yes |
| AIS collision and MOB alarms | Yes |
| Integrated AIS transponder | Yes |
VHF Radio
| Region | All U.S., Canadian and International marine channels; NOAA weather channels |
|---|---|
| VHF frequency range Tx | 156.025–162.025 MHz |
| VHF frequency range Rx | 156.025–163.275 MHz |
| VHF transmit power (max) | 25 W, 1 W (high, low) |
| Transmitter frequency tolerance | +/0.3 kHz |
| Adjacent channel power | more than 70 dB |
| Spurious emissions | Less than –80 dBc (at 25 W) |
| Sensitivity (12 dB SINAD) | -118 dBm (-11 dBu/0.28 uV) |
| Adjacent channel selectivity | 80 dB |
| Spurious response | more than 75 dB |
| VHF intermodulation | more than 75 dB |
| Max antenna gain | 6 dBi |
DSC
| Class | Class D |
|---|---|
| Sensitivity (1% BER) | -117 dBm (-10 dBu/0.32 uV) |
| Adjacent channel selectivity | 80 dB |
| Spurious response | more than 75 dB |
| Intermodulation | more than 75 dB |
AIS Transponder Features
| Remote station support | RM 100 (x5) |
|---|
AIS
| Class | SOTDMA Class B |
|---|---|
| Long range position reports (Msg 27) | Yes |
| Frequency range | 156.025 – 162.025 MHz |
| AIS power output | 5 W |
| AIS Sensitivity (20% PER) | -115 dBm (-8 dBu/0.4 uV) |
| Adjacent channel selectivity | 80 dB |
| Spurious response | more than 75 dB |
| Intermodulation | more than 65 dB |
GNSS
| Integrated GNSS receiver | Yes |
|---|---|
| Integrated GNSS antenna | Yes |
| Constellations | GPS, GLONASS, BeiDou, Galilleo |
| Differential support | SBAS, AIS Msg 17 |
| Navigation rate | 10 Hz |
Sensors
| NMEA 2000 Compatible | Yes |
|---|---|
| Battery voltage | Yes |
Audio
| Max speaker output power | Fist Mic: 5 W RMS, < 1% THD |
|---|---|
| Max external speaker output power | 15 W RMS, < 1% THD, 4 Ω |
| Max hailer loudspeaker output power | 25 W RMS, < 1% THD, 4 Ω |
Tactical Features
| Night vision mode | Yes |
|---|---|
| Stealth mode | Yes |
Electrical Features
| Typical current draw at 12 Vdc | Head Unit: 700 mA, 6 A maxFist Mic: 90 mA, 0.9 A max |
|---|---|
| Compass-safe distance | Head Unit: 70 cm (27.6")Fist Mic: 40 cm (15.8") |

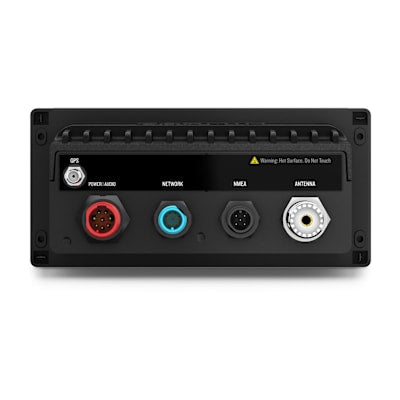

Networking & Connections
| Garmin Marine Network | GMN 1.0/2.0 |
|---|---|
| Wireless Connectivity | Access point for mobile phones, 802.11b/g/n, integrated antenna |
| Wireless security | WPA2 Personal |
| External GNSS antenna connector | SMA |
| ANT connector | SO-239 (50 Ω) |
In the box
Garmin Signal™ VHF 400 head unit
Fist mic
Sun cover
Head unit power and external audio cable with fuse (2 m)
Fist mic power cable with fuse (2 m)
Drop cable for NMEA 2000® network (2 m)
Mounting hardware
Mounting template
Documentation
Product reference
Garmin Signal™ VHF 400
Regular price
$1,499.99
