Garmin

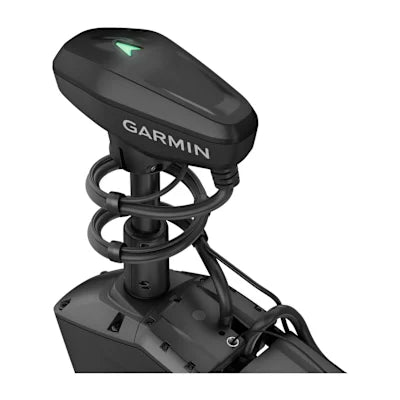

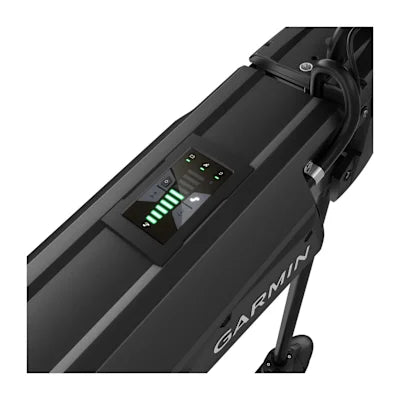

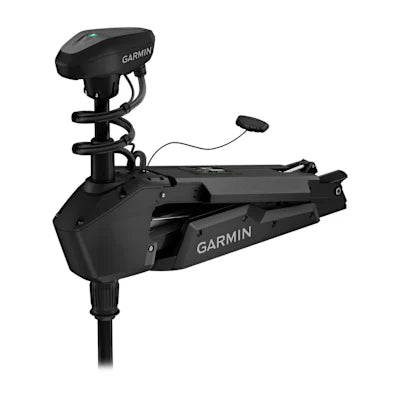

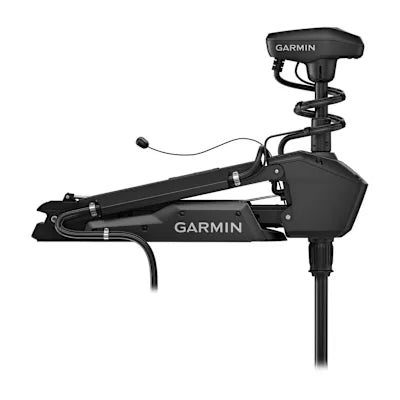

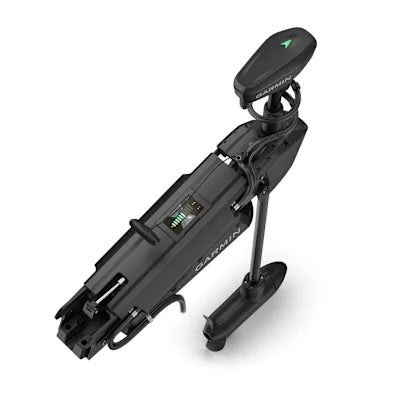

Force® Pro Trolling Motor
SKU: 010-03011-00
Regular price
$4,199.99
Tax included.
Premium scissor-style trolling motor.
Details
Part number / SKU: 010-03011-00
Category: Marine / Trolling Motors
Specifications
General
| WARRANTY | 3-year, limited lifetime on shaft |
|---|---|
| COLOR | black |
| FOR USE IN | freshwater, brackish water and saltwater |
| MOUNT STYLE | scissor-style mount |
| MAX THRUST | 100 lbs per ISO 13342 using high efficiency propeller at 36 V 80 lbs per ISO 13342 using high efficiency propeller at 24 V |
| VOLTAGE | 24 V or 36 V |
| ELECTRIC STEERING | Yes |
| LIFT-ASSIST | dual gas springs |
| BUILT-IN HEADING SENSOR | Yes |
| BUILT-IN GPS | yes (dual frequency GPS) |
| WATER RATING | IPX7 |
| MOUNTING LOCATION | bow |
| WIRELESS REMOTE | yes (included) |
| FOOT PEDAL COMPATIBLE | yes (included) |
| BATTERY INDICATOR | Yes |
| VARIABLE SPEED CONTROL | yes (20 steps) |
| LIGHTED DIRECTION INDICATOR | Yes |
| DECK STABILIZER ROD | yes (included) |
| QUATIX REMOTE CONTROL SUPPORTED | Yes |
| MANUAL REVERSE CONTROL | Yes |
Sonar Features
| FREQUENCIES SUPPORTED | Traditional: High-wide CHIRP (150-240 kHz) ClearVu/SideVu: 455 kHz, 800 kHz, 1000 kHz |
|---|---|
| TRANSMIT POWER | Traditional: 350 W ClearVü/SideVü: 500 W |
| MAXIMUM DEPTH | CHIRP sonar: 800' freshwater ClearVü: 400' SideVü: 500' |
| DEPTH/SPEED/TEMPERATURE | depth and temperature |
| NUMBER OF PINS | 12-pin (orange connector) |
Autopilot Features
| ROUTE FOLLOWING | Yes |
|---|---|
| ANCHOR LOCK | Yes |
| SMART ANCHOR LOCK FEATURES | Yes |
| ANCHOR LOCK JOG | Yes |
| HEADING HOLD | Yes |
| CRUISE CONTROL | Yes |
| GESTURE FEATURES | yes (manual+, heading hold+, jog+) |
Foot Pedal Features
| DIMENSIONS | 12" L x 9" W x 4 1/2" H |
|---|---|
| WIRELESS COMMUNICATION | Yes |
| POWER INSTALLATION | 12 V/24 V/36 V wired or battery powered (2 AA) |
| AA BATTERY LIFE | 1 full season |
| WATER RATING | IPX7 |
| ADJUSTABLE PEDAL RESISTANCE | Yes |
Remote Features
| DISPLAY SIZE | 1.2" (30.2 mm) diameter |
|---|---|
| DISPLAY RESOLUTION | 240 x 240 pixels |
| DISPLAY TYPE | color, sunlight-visible, transflective memory-in-pixel (MIP) |
| CHARTPLOTTER USER-PROGRAMMABLE KEYS | Yes |
| AUTOPILOT FEATURE CONTROL | Yes |
| WATER RATING | IPX7 |
| BATTERY LIFE | typical use with backlight at low, 43 weeks |
| FLOATS | Yes |
In the box
Force® Pro Trolling MotorHigh efficiency propellerWeedless propellerFoot pedalRemoteStabilizerAssembly and mounting hardwareDocumentation
Product reference
Force® Pro Trolling Motor
Regular price
$4,199.99
